CFM700-Paper Folder

Stock Code : MCCYCFM700

Advanced A3 Folding Machine

Read More

£2,395.00 ex VAT

CFM 700 A3 Folding Machine

Following on from the CFM 600 with more advanced features including conveyor belt stacking of paper for neater paper reception.

Counter unit display, perforating wheels and creasing wheel for cross-folding, adjustable speed and paper feed/thickness control.

The CFM 700 also includes scoring and perforating wheels making the unit a very useful multi functional machine for today's modern versatile print room.

  • Multi functional - folding, scoring and perforating

  • Heavy-duty construction

  • Reliable friction feeding - with speed up to 120 sheets A4/min

  • Easy adjustment - of side guides

  • Mis-feed detection

  • Paper thickness adjustment

  • Paper feed adjustment

  • Perforating wheels

  • Creasing wheel - for cross-folding

  • Paper fold chart - for easy setup

  • Conveyor belt - to neatly stack finished sheets

  • Telescopic - feeding and delivery table

  • Adjustable speed

  • Counter display

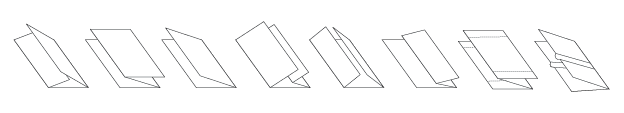

Types of fold : Standard letter, Concertina, Single, Double parallel, Brochure, Half concertina, Cross fold
Speed : 320mm
Grammage : 80 - 160 g/m2
Packing size : 660 x 560 x 450 mm
Input Capacity : 300 Sheets (80 g/m2)
Format : SRA3, A3, A4, A5
Dimensions : 1130 x 460 x 480 mm
Voltage / Frequency : 230 V / 50Hz
Weight : nett 28 kg, gross 33,5 kg
