Matrix MX-530P

Stock Code : MCVIMX530P

The Matrix Pneumatic can run up to twice the speed of our standard systems. Printers can laminate work even faster to get the job finished and back to the customer.

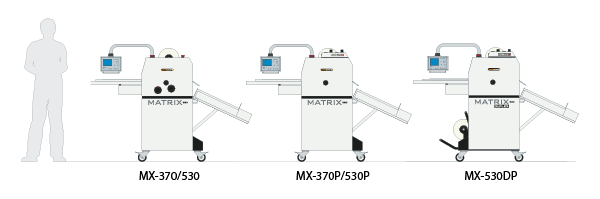

Pneumatic pressure rollers allow you to laminate certain substrates up to 50% quicker, saving both time and cost. The Matrix can be purchased as a complete system, or as a modular retrofit for the multilingual MX-370 and MX-530.

Read More

The Pneumatic option is produced in Britain which shortens our supply chains and lead times. We’ve used the highest quality components within the systems, including Omron switches, Schneider electrics and British built Bambi compressors.

Pneumatic
The best selling MX-370 and MX-530 are now also available with pneumatic rollers. The Pneumatic Matrix delivers much faster production times compared to the standard systems. They can run up to twice the speed, so now printers can laminate their work even faster to get the job finished and back to the customer.

Cost-effectiveness
Matrix systems are incredibly cost-effective, meaning you can now truly offer a one-stop shop for your customers. You can avoid the costly trips and set-up charges of outsourcing to the print finisher on the other side of town. So you can increase the service you offer and cut your expenses - all with no delays too. Matrix offers you the ideal investment in finishing your digital and litho print work - on demand - for brochures, menus and business cards.

The beauty of simplicity, the reliability of strength
Matrix laminators are made using the strongest parts available - they're reliable, simple to use and are capable of returning much more than your investment. Everything about them is aimed at helping you to do your job more efficiently.



Great for use in... Commercial printers, Digital printers, Copy and print shops

Ideally suited for... Business cards, Menus, Book covers, Brochures, Flyers

  • Pneumatic: A single-side laminator is the perfect solution for high quality lamination of business cards, flyers, book covers, greetings cards and much more.

  • Single sided laminating: A single-side laminator is the perfect solution for high quality lamination of business cards, flyers, book covers, greetings cards and much more.

  • Control panel: Our exclusive patented multilingual control panel is simple and easy-to-use. It's available in English, French, German, Spanish and Italian. It takes virtually no training to set-up your laminator for whatever you need, yet it gives you complete control over every job.

  • Matrix feed table: The semi-automatic feed with auto-overlap makes it easy to feed your work through the laminator and the separator ensures it's ready for the guillotine the moment it's been laminated.

  • Control knobs: Our unique anti-curl technology, in sync with the control panel, ensures that whatever you laminate - a menu, a book cover or a sheet of business cards - comes out flat with no curl or uplift.

  • MATRIX sheets: The range covers everything up to a maximum paper size of B2 / 28x39".

Power Supply AC (v, 50Hz) : 220 / 240
Paper Thickness (gsm / lbs) : 135+ / 90
Document Size :
Laminating Temperature Range (°C/°F) : 0-140 / 32-284
Overall Dimensions - Depth x Height (mm / inches) : 2050 x 1400 / 81 x 55
Hot Roller Heater System :
Warranty :
Laminating Thickness (micron) :
Gross Machine Weight (Kg / lbs) : 240 / 529
Max. Laminating Film Width (mm / inches) : 510 / 20
Power Supply Required (Amps) : -
Max. Encapsulating Width (mm / inches) :
Number of Rollers :
Overall Dimensions - Width (mm / inches) : 900 / 35
Control Panel : Multilingual LCD
Max. Paper Size (mm / inches) :
Encapsulating Speed (mm/min / inches/min) :
Warm-up Time (mins) : 10
Mounting Thickness (mm / inches) :
Dimensions without Packaging (mm / inches) :
Power Supply AC (v, 60Hz) : 240
Max. Width (mm / inches) :
Roller Diameter (mm / inches) :
Film Core (mm / inches) : 77 / 3
Laminating Speed (m/min / feet/min) : 10 / 33
Pressure Adjustment : Pneumatic
Power Consumption (W) : 2400
