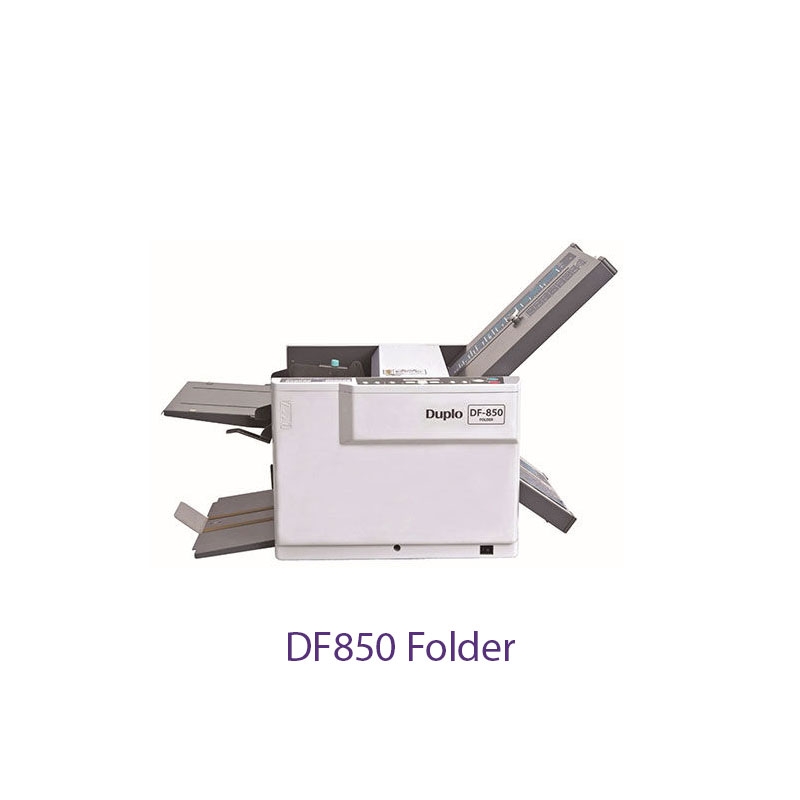

DF-850 Desktop Folder

Stock Code : MCDUDF850

The DF-850 and DF-870 are the fastest table top folding solutions in their category, with a top speed of 241 sheets per minute. They are twice as fast as its predecessors and user friendliness is at the heart of the design of these folders, with features such as easy to use control panel, a batch mode and a reliable friction feeding mechanism, with up and down counter. The efficiency and productivity of the DF-850 and DF-870 results in both time and cost savings.

Read More

Fold Types



Recommended for

Target Market:

  • Mailing houses, Governments, Councils, Publishers, Libraries, Local newspapers, Schools, Universities, Trade associations, Manufacturing, Hotels and leisure centres to mention a few.

Applications:

  • Magazines & Newspaper inserts, Letters, Leaflets, Brochures, Menus, Bulletins and Direct mail pieces


Unique Selling Proposition

  • Up to 241 sheets per minute
  • User friendly
  • Paper sizes: B7 to A3
  • Six pre-programmed popular folds
  • Customize non-standard folds
  • Crossfold as standard
  • Batch mode
  • Noise level: 76 dB *4

Versatility
{Image: Image 1}
The DF-850 is equiped with six pre-programmed folding modes: Single Double, Irregular Accordion, Letter, Accordion and Gate Fold. It can also create Custom Fold and Cross Fold. These features ensure a huge level of flexibility.
Flexibility

The DF-850 can accomodate a wide variety of paper sizes from A3 to B7, paper thickness from 52.3 to 157 gsm and paper types such as recycled paper, uncoated bond paper, stencil paper and specified coated paper.

Batch & Interval Functions

You can set the pace of folding to suit yourself on the DF-850, with its batch mode and interval function. For long runs, keep the machine running at continious speed but with short pauses at set intervals to allow offloading without completely stopping.
Speed :
Types of fold : Folding Mode Single Fold, Double Fold, Irregular Accordion Fold, Letter Fold, Accordion Fold, Gate fold*1,cross fold*2, custom fold
Format :
Grammage :
Input Capacity :
Dimensions : 575x515x655 mm
Packing size :
Weight : 31.5 kg
Voltage / Frequency :
Maximum Paper Size : 297x432 mm
Minimum Paper Size : 91x128 mm
Paper Quality : Recycled paper, Uncoated bond paper,Stencil paper, Art and coated paper*
Paper Weight : Paper Weight 52.3 to 157 gsm
Maximum Processing Speed : 241sets/minutes (A4, single fold , 81.4gsm)
Capacity of Feeding Tray : 500 sheets (fine quality paper 64 g/m²/17 lb.)
Feeding Mechanism : Manual up and down
Automatic Folding Stopper and Stacker Roller : No
Cross-Fold : Yes
Noise Level : 76 dB
Power Supply : 100-240 V (50/60 Hz)
Current Consumption : 1.3-0.650 A (125 W)
