DBM 350C Booklet Maker

Stock Code : MCDU350CT

MID-RANGE BOOKLETMAKING SYSTEM WITH COMPACT COLLATOR
Duplo presents the 350C Booklet System, a high production collating and bookletmaking system that boasts one of the smallest footprints.

Read More

Aimed specifically at the mid-range digital print market, the 350 Digital Booklet System is cost-effective and able to support your business through its ability to handle a wide range of applications, including complex jobs with variable paper stock weights and types. Combines the DBM-350 Booklet Maker and Trimmer with the DSF-2200 Sheet Feeder.

  • Fully automated bookletmaking system

  • Quick and simple set-up

  • Compact design

  • 3,000 A5 booklets per hour

  • Modular

Finishing Modes

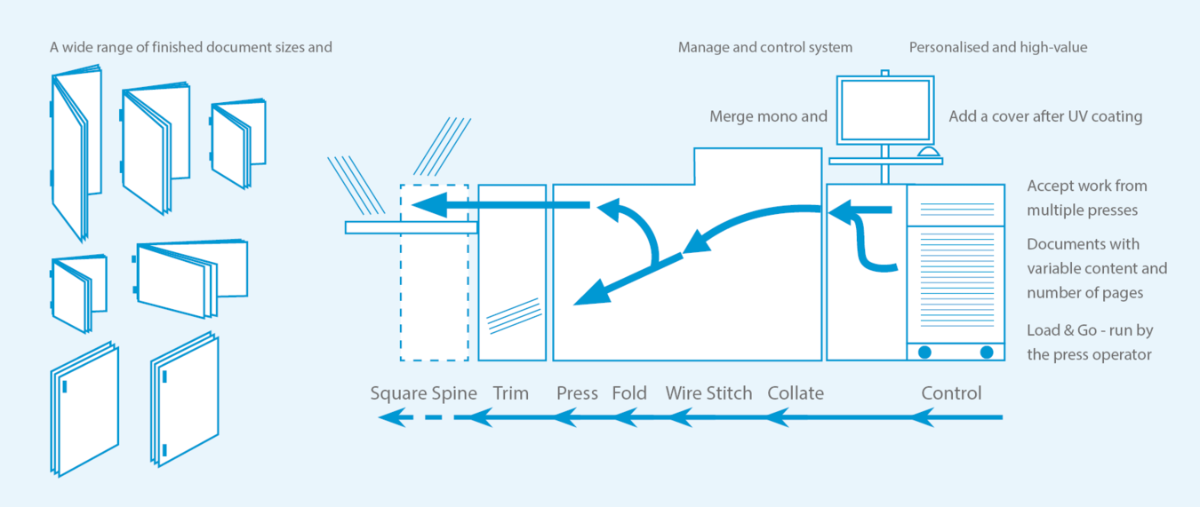

Finishing Process

Great for use in

Brochures, CD/DVD covers, Menus, Flyers and Mailers

OPTIONS

  • Bridge Unit - The bridge unit allows for two collator towers to be connected together, this is ideal for collating larger sets or producing thicker booklets.

  • Stacker - An optional built-in stacker is available on the DSC-10/20 collator. The intelligent 100mm stacker can quickly switch from straight to offset stacking should the requirements of the job change.

  • Small Booklet Kit - By using the small booklet kit, the operator can produce booklets as small as 105 x 100 mm, perfect for producing applications such as CD books.

  • Hohner Loop Stitching Heads - Producing booklets with loop stitch can add real value to your documents. The loop stitch option makes it easy to insert booklets into a 2-hole ring binder.

  • Corner Stitching - The corner stitch kit is an ideal solution to keep those collated sets together. By using this option, an even larger variety of applications can be produced.

  • Waiting Mode - The “Waiting Mode” feature increases productivity by up to 10%. If a Miss or a Double occurs twice from the same bin, all feed heads will remain at the correct feeding height so that production can quickly resume.

  • Hand-Marry - The 350C Booklet System, also features a handmarry unit as standard. This is ideal for users wishing to add extra sheets to collated sets.

  • Collating Modes - A variety of collating modes are available on the DSC-10/20 such as Block mode and Alternate mode, both of which contribute to its high productivity.

  • Low Running Costs - Stitching wire has a significant advantage over staple, not only is stitching wire cheaper than staples, but the quality of the finished book is a great deal better. A spool of stitching wire also has a high yield of stitches allowing for less user intervention when replacing consumables.

  • Powerful Feeding System - The high speed DSC-10/20 collator features an advanced feeding system capable of handling stocks in a variety of sizes and weights. Each bin is equipped with adjustable highpowered fans that contribute to its accurate and consistent feeding.

  • High Productivity - Despite its small size, the DSC-10/20 is a high production machine, its rapid 7,200 sets per hour speed rivals many of the larger collators on the market.

  • Colour Touch Screen Panel - The large intuitive colour touch screen control panel allows the operator to monitor the progress of each job at all times. Simple error messages such as double and miss feed are clearly displayed and recorded to ensure that there is a true total count of each job.

  • Convenient Upgrade Path - The DSC-10/20 collator can connect to a number of bookletmakers making it very easy to upgrade the system should the business’s demands grow.

  • DBM-350 Dynamic Bookletmaker and Trimmer - The fully automated Deluxe stitching heads and top speed of 3,000 booklets per hour make the DBM-350/T an ideal solution for high volume, high quality bookletmaking.

  • User-Friendly - The DBM-350 features a simple and easy to use screen that guides you through the set up process. 20 programmable job memories can also be found on the control panel should the operator wish to quickly switch jobs.

  • Enhance Quality of Booklets - The DBM-350 is Duplo’s first bookletmaker to feature an integrated spine press, perfect for creating professional looking booklets. The settings of the spine press can easily be adjusted to match the thickness of the booklet.

  • Truly Automatic Finishing - There is no need for manual intervention on the DBM-350, the easy touch button set-up makes switching jobs effortless. By entering the parameters of the job, all stitch, fold and trim positions are automatically adjusted.

Max Speed - (Booklets/Hour): : 3000 sph
Paper weight range: : 52-300gsm
Maximum sheet size: : 320 x 460mm
Minimum sheet size: : 148 x 210mm
Minimum book size: :
LCD control panel: : Standard
Bin capacity: :
Maximum book size: :
Intelligent feeding: :
Booklet size :
Paper type :
Stapling thickness :
Max Processing Speed :
Stapling Width :
Trimming waste width : margin 1-20mm
Stapler : 2 Stitching heads
Number of sheets that can be trimmed :
Staple Capacity :
Detecting Function :
Noise Emission :
Operation Panel :
Power Supply : 230v
Current Consumption :
Speed :
Capacity :
Net Weight : 230kg
Booklet size, max :
Squarefolding modes :
Booklet size, min :
Sheet count (Min) :
Dimensions excl. base :
Feeded book size W x L (Min) :
Feeded book size W x L (Max) :
Sheet count (Max) :
Finished book size W x L (Min) :
Finished book size W x L (Max) :
Face trimming (Min) :
Face trimming (Max) :
Side trimming (Max) :
Side trimming (Min) :
Duty cycle :
Set size (stapled folding) :
Standard Paper Sizes :
Stapler Modes :
Dimensions :
Staples : up to 40,00*
Stapler Heads : 2
Error Detection :
Book thickness (Min) :
Staples per cartridge :
Book thickness (Max) :
Output conveyor capacity :
Trimmed booklet size (Min) :
Staples per booklet :
Book Stacker capacity (Optional) :
Stitching :
Book Stacker :
No. of Bins :
Off-line use :
