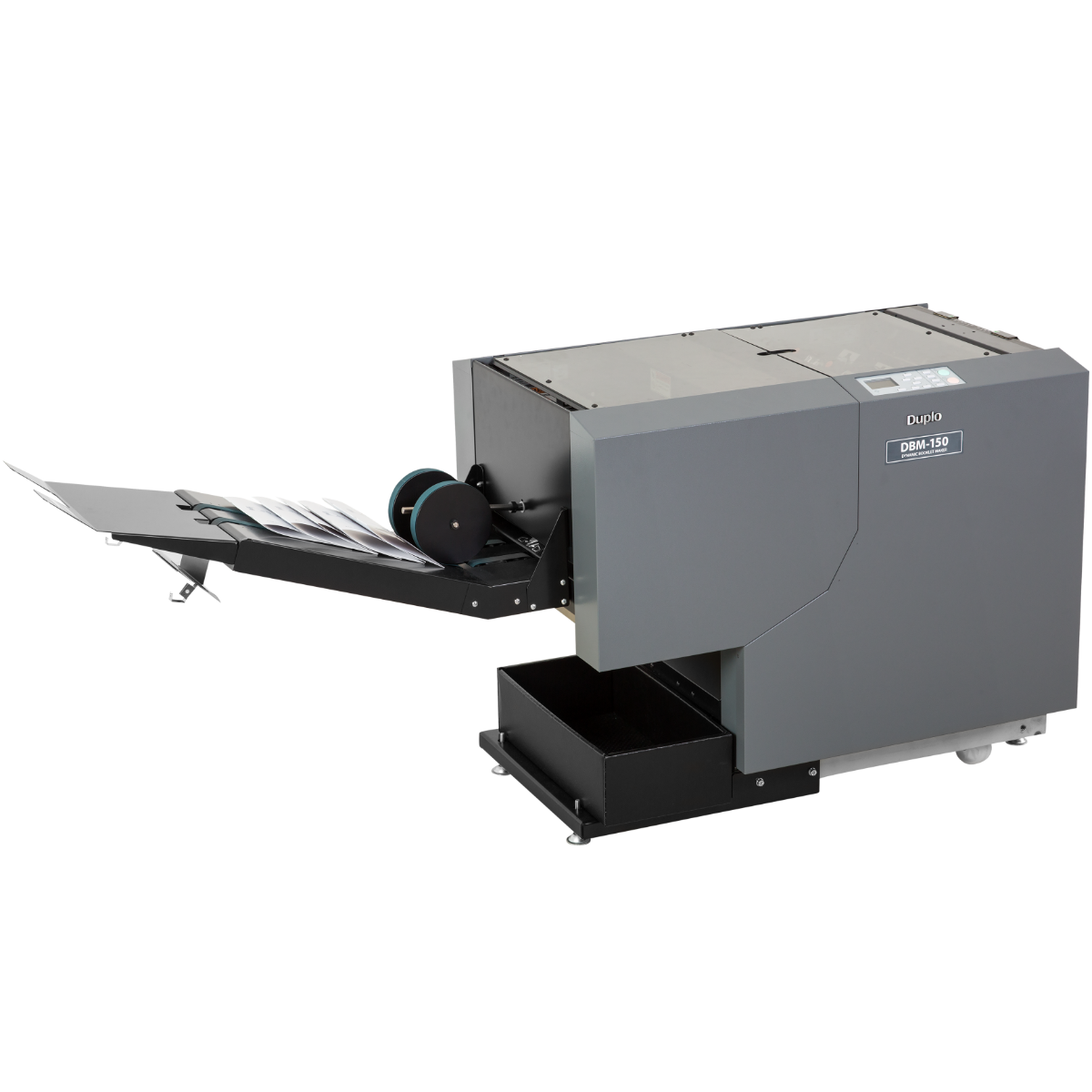

DBM-150 & 150T

Stock Code : MCDU69

THE WORLD’S SMALLEST FULLY AUTOMATIC BOOKLETMAKER AND TRIMMER

The DBM-150 is the world’s smallest fully automatic bookletmaker and trimmer. Equipped with Duplo’s superior engineering within a compact footprint. It can produce finish documents either sheet by sheet or set by set. The DBM-150 is designed to meet the challenges of today’s offset and digital printer. Duplo has bundled the features of the big bookletmakers into this uniquely compact system.

Read More
DBM 150 Digital Booklet System
DBM-150 Digital Booklet Maker
DBM-350T-Booklet Maker
DBM 350T Booklet Maker
BM3000
BM350-500 Bookletmaker
BM61 Booklet Maker with Squareback
BM61 Bookletmaker
  • Fully automated bookletmaking system
  • Speed up to 2400 books per hour
  • Sheet by Sheet or Set by Set
  • Modular


Booklet Making Process

Finishing modes:
The DBM-150 can finish side stapling, corner stapling and fold saddle stapling applications. It is also possible to produce fold only applications.

Great for use in:
University Prospectus, Menus, Catalogues, Brochures, Coupon booklets, Yearbooks, Magazines, Small Information Booklets, CD Booklets, Order of Service

  • Compact footprint - The 150 Bookletmaker and Trimmer is 13% smaller than its predecessor the 120. The small footprint of this booklet system makes it easy to install in places with limited space. The DBM-150 and DBM150T is the ideal companion for low to mid volume users such as Quick printers, Copy shops, in-plants and digital printers. Despite its small size, this system can finish a wide range of applications.

  • Media - The DBM-150 can finish wide range of applications. It can handle sheet sizes from 120mm x 210mm to 320mm x 460mm and paper weights from 64gsm to 300gsm. The small booklet kit is standard in the DBM-150.

  • User Friendly - The DBM-150 bookletmaker and trimmer features a state of the art control panel which is very simple and easy to use. The operator can set up a job in four simple steps. Everyone can operate the DBM-150 with or without very little training. It is the most user-friendly bookletmaker in its class!

  • Automatic Set up - The booklet size on the 150 Bookletmaker and Trimmer can be changed without any tools and takes only a few seconds. Simply select the required size and the guides and trimming position adjust automatically. If required, the operator can adjust the stapling position manually.

  • Finishing Modes - The DBM-150 can finish side stapling, corner stapling and fold saddle stapling applications. It is also possible to produce fold only applications.

  • Hand-feeding - The 150 Bookletmaker and Trimmer can be used as a stand-alone system. The operator can manually feed sets through the hand feeder, which is ideal for very short run or pre-collated jobs.

  • Modularity - This highly modular system and can be customised according to the end users needs, allowing them to configure and expand as their demands change. The DBM-150 and DBM-150T can be configured to the DSC-10/20, DSF-2200 and DFC-100.

  • Speed - The 150 Bookletmaker and Trimmer can produce up to 2400 books per hour.

  • Trimmer - The 150 trimmer is fully automatic and is programmed from the 150 bookletmaker. The operator can adjust the trimming position from 1 to 20mm.

Download Full Spec
Max Speed - (Booklets/Hour): :
Maximum sheet size: :
Minimum book size: :
Minimum sheet size: :
Paper weight range: :
Max Processing Speed : 2400 sets/hour (fine quality 81.4 gsm / within 10 sheets saddle staple/fold A5 finished)
Maximum book size: :
Stapler : ISABERG RAPID R952
Stapling thickness : Fine Quality: within 2.5mm (Maximum of 25 sheets regardless of paper weight) Art/Coated: within 2.0mm (Maximum of 20 sheets regardless of paper weight)
Intelligent feeding: :
Bin capacity: :
Stapling Width : 70, 108, 160, 258, and 276mm (2.76, 4.25, 6.30, 10.16 and 10.87inch)
Number of sheets that can be trimmed : 4 to 50 sheets
Trimming waste width : 1 to 20 mm
Booklet size : Saddle stapling and folding - Length 210 to 460 mm Width 120 to 320 mm Standard size: A5SEF, A4 SEF, A4 LEF, A3 SEF, A3SR SEF, B5 SEF, B4 SEF, LGR SEF, LGL SEF, LTR SEF, LTR LEF, STMT SEF
LCD control panel: :
Paper type : Fine quality: 64 to 127.9gsm, Art/Coated: 104.7 to 127.9gsm Cover: Fine quality, Art/Coated within 300gsm
Staple Capacity : 5,000 staples per cartridge
Net Weight : 137kg
Noise Emission : Equivalent continuous Aweighted sound pressure level: 75.2 Sound pressure level: 92.5 (measured at 1 m away from the control panel, 1.5 m from the floor)
Operation Panel : LCD control panel (DBM-150)
Detecting Function : Paper jam (in-feed section, stopper section, ejecting section), Staple near empty, Corner and Side Staple Kit detection, Cover open/close, Knife stop position error, Motor overload detection, Folding roller gap
Power Supply : 120 to 240 V 50/60 Hz
Current Consumption : DBM-150: 130W 1.2-0.7A DBM-150 + DBM-150T: 230W 2.2-1.1A
Capacity :
Speed :
Finished book size W x L (Min) :
Booklet size, min :
Face trimming (Max) :
Feeded book size W x L (Min) :
Dimensions excl. base :
Sheet count (Max) :
Face trimming (Min) :
Feeded book size W x L (Max) :
Sheet count (Min) :
Squarefolding modes :
Booklet size, max :
Finished book size W x L (Max) :
Duty cycle :
No. of Bins :
Set size (stapled folding) :
Dimensions :
Staples :
Book Stacker capacity (Optional) :
Stapler Heads :
Stapler Modes :
Book thickness (Min) :
Trimmed booklet size (Min) :
Side trimming (Min) :
Standard Paper Sizes :
Side trimming (Max) :
Output conveyor capacity :
Staples per cartridge :
Book thickness (Max) :
Staples per booklet :
Error Detection :
Book Stacker :
Off-line use :
Stitching :
