AWB-320 Auto Wire Binder

Stock Code : MCAWB320

The worlds first automatic desktop wire closer that requires no set up. The AWB-320 can detect the size of wire used and close the wire evenly and accurately every time.

Read More

£1,299.00 ex VAT

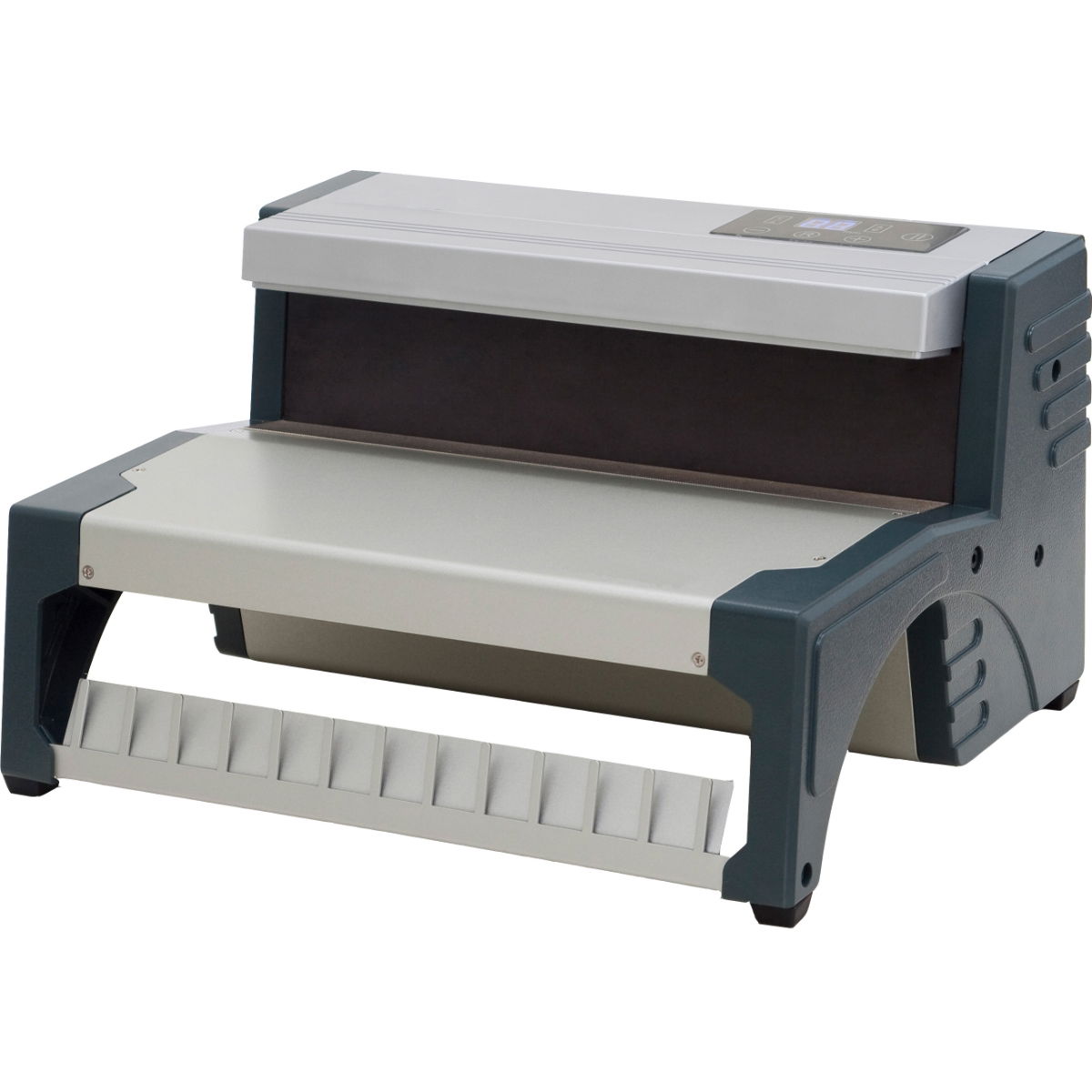

The AWB-320 is the first Wire Binder that uses an auto size detector to automatically close wires, negating the need to set up the machine.

Ideal for business's that have lots of Wire binding to do or where multiple operators use the machine, the AWB-320 detects the size of the wire and whether it is a 3:1" or 2:1" pitch will accurately close every time.

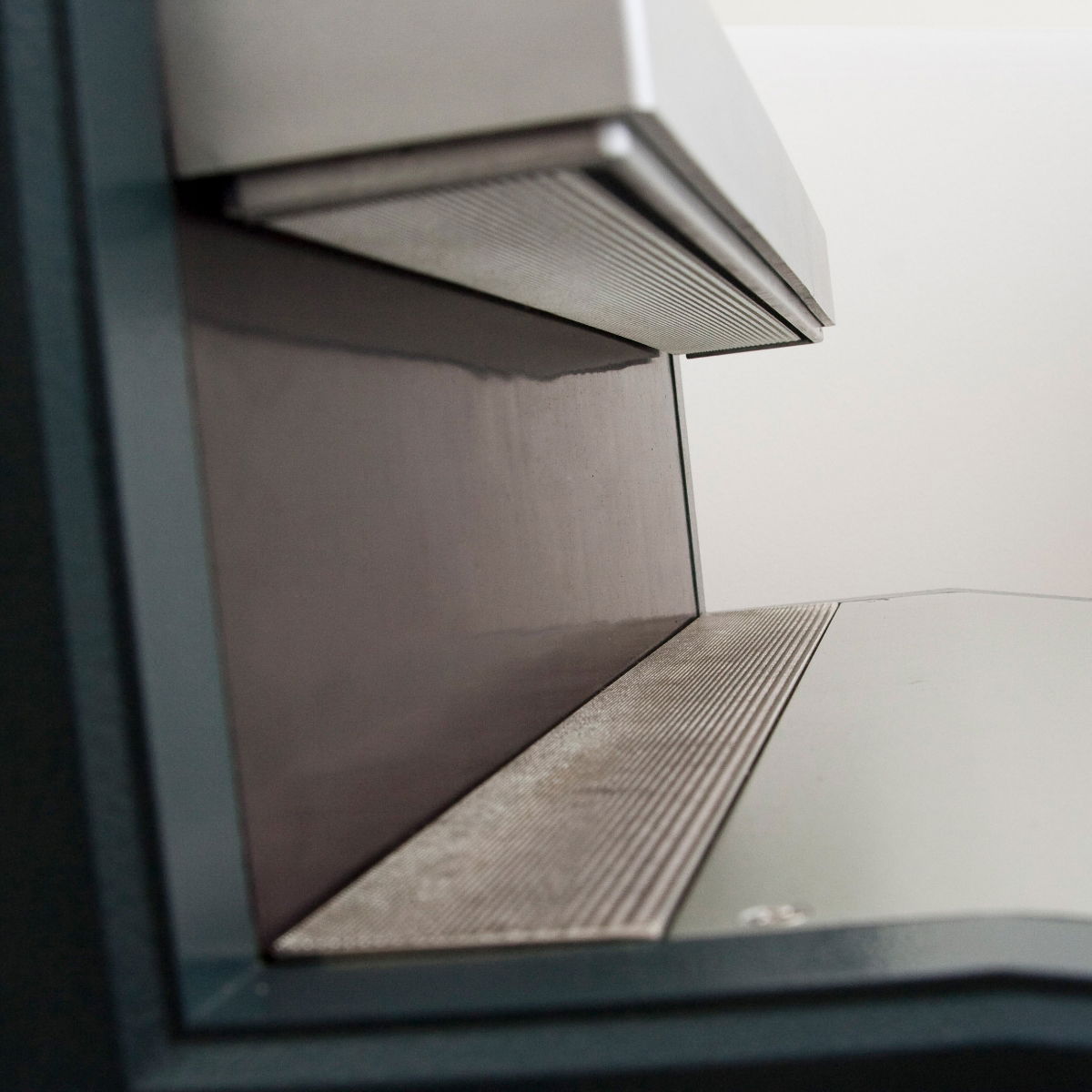

Wires are held in position by use of a strong back magnet and textured closing jaws. With the closing jaws triggered by a touch button or optional foot pedal.

  • Closes all wire sizes - from 6mm (1/4") through to 38mm (1 1/2")

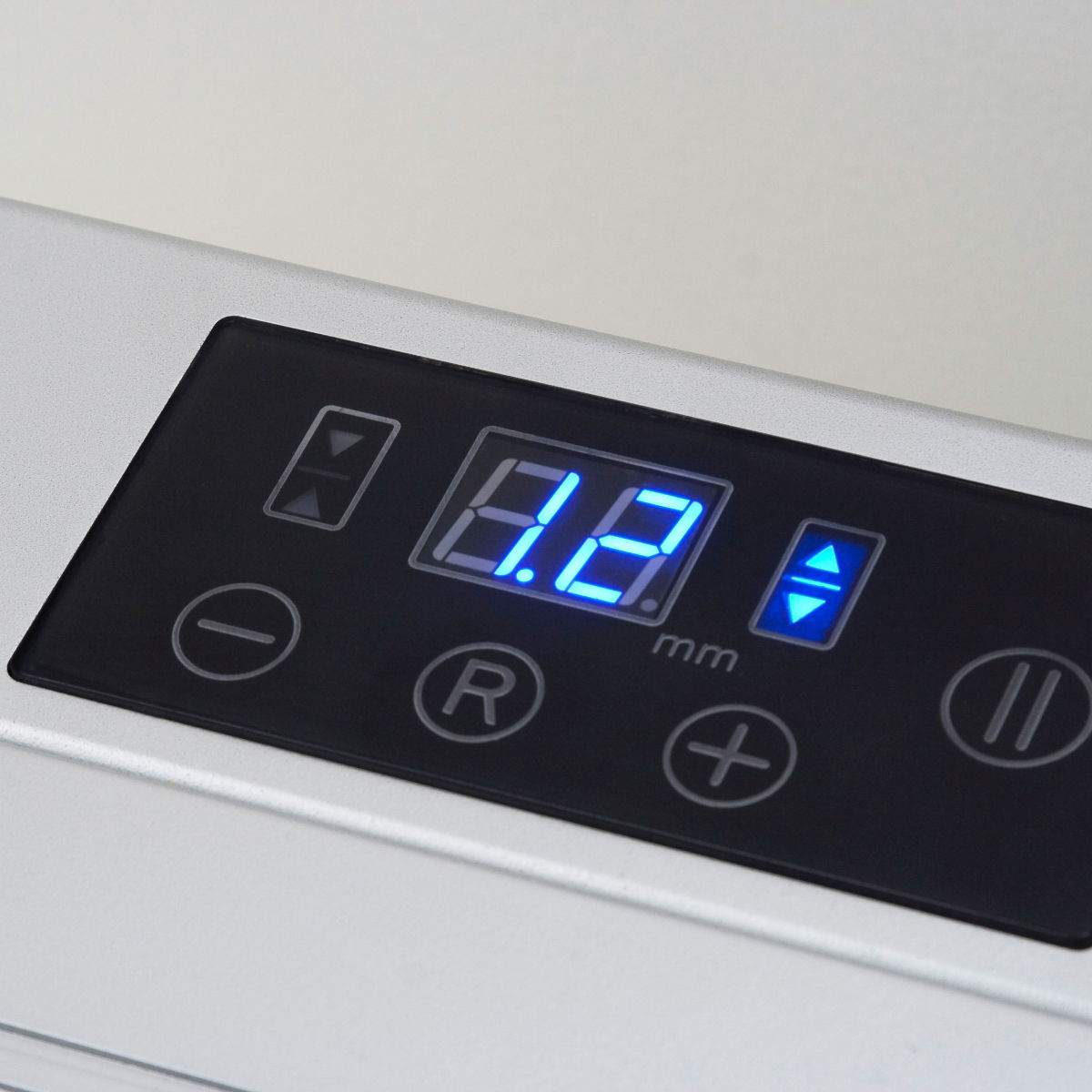

  • Touch pad operation - or optional foot pedal.

  • Touch pad micro adjustment - should you need to close the wire more or less.

  • Integral Wire holder - allows all wire sizes to be held in place and loaded with pre punched paper.

  • Magnetic back wall and textured closing jaws - ensure the wire is held accurately in position during closing.

  • Built in safety sensor - protects against accidental closing on objects other than wires.

Weight (Kgs) : 12 Kgs
Safety Approvals : CE
Machine Dimensions (L x W X Hmm) : 380(w) x 220(h) x 320(d) mm
Binding Width :
Wire closing range :
Capacity - Paper size (Max/Min) :
Power Requirement : 230v/50hz
Motor :
Suggested Binding Capacity :
Single Punch Capacity :
Speed :
Adjustable Roller :
Space requirement :
Min. unbound edge :
Hole Size :
Binding element :
Single Punch Length :
Max. binding width :
Inserting :
Compressed air :
Calendar hangers :
Max. unbound edge :
Crimping Length :
Min. binding width :
Format change without diameter :
Machine Set-up :
Crimping :
Pitch :
Side Margin Guide :
Operation : Keypad or optional foot pedal
Crimping Capacity :
Pitch :
Adjustable Crimper Heads :
Machine Cycle :
Disengageable Pins :
Inserting Roller :
Binding thickness :
Time required for diameter change :
Document Size :
Productivity :
Wire Capacity : 6mm (1/4") to 38mm (1 1/2")
Narrow Cut : 35mm
Binding Length : 320mm (A4 Wire)
