Onyx HD7725 Ultima Super Heavy-Duty Punch

Combining the Rhin-O-Tuff patented Quick Change Die System with the following features: 14” (356 mm) open ended extra capacity die: Punch up to 55 sheets or 110 pages of 11 inch, 20 pound (80 gsm) bond paper. The number of sheets depends on the paper weight and punch pattern used. Punching is triggered by both a foot pedal and a side-lay micro switch, making punching accurate and simple. U-View waste tray: Holds up to 150% more waste than any other table top punch binding machine & eliminates troublesome overfills. The Accu-Set Paper Stop: Set-up all hole placements easily & accurately, even on odd sized paper. Automatic and Manual Reverse: Providing extra insurance to reduce costly down time & expensive service calls due to overload jams. With these new features plus a 3 year warranty along with all of the standard features below, the HD7700 Ultima punch binding machine will handle any size project, large or small. Designed for high volume commercial and corporate use. Currently the Onyx HD7725 Ultima is the machine of choice when replacing the GBC Magna Punch Elite and Renz DTP 340M punching solutions, call us for a free trial of this machine.

• Patented Auto Reverse Feature - Our new Overload Detection feature, triggers an auto reversing function to reduce jamming in the punch.

• Rated up to 55 sheets or 110 pages of 20 pound (80 gsm) paper - The number of sheets depends on the paper weight and punch pattern used.

• 25 cycles per minute.

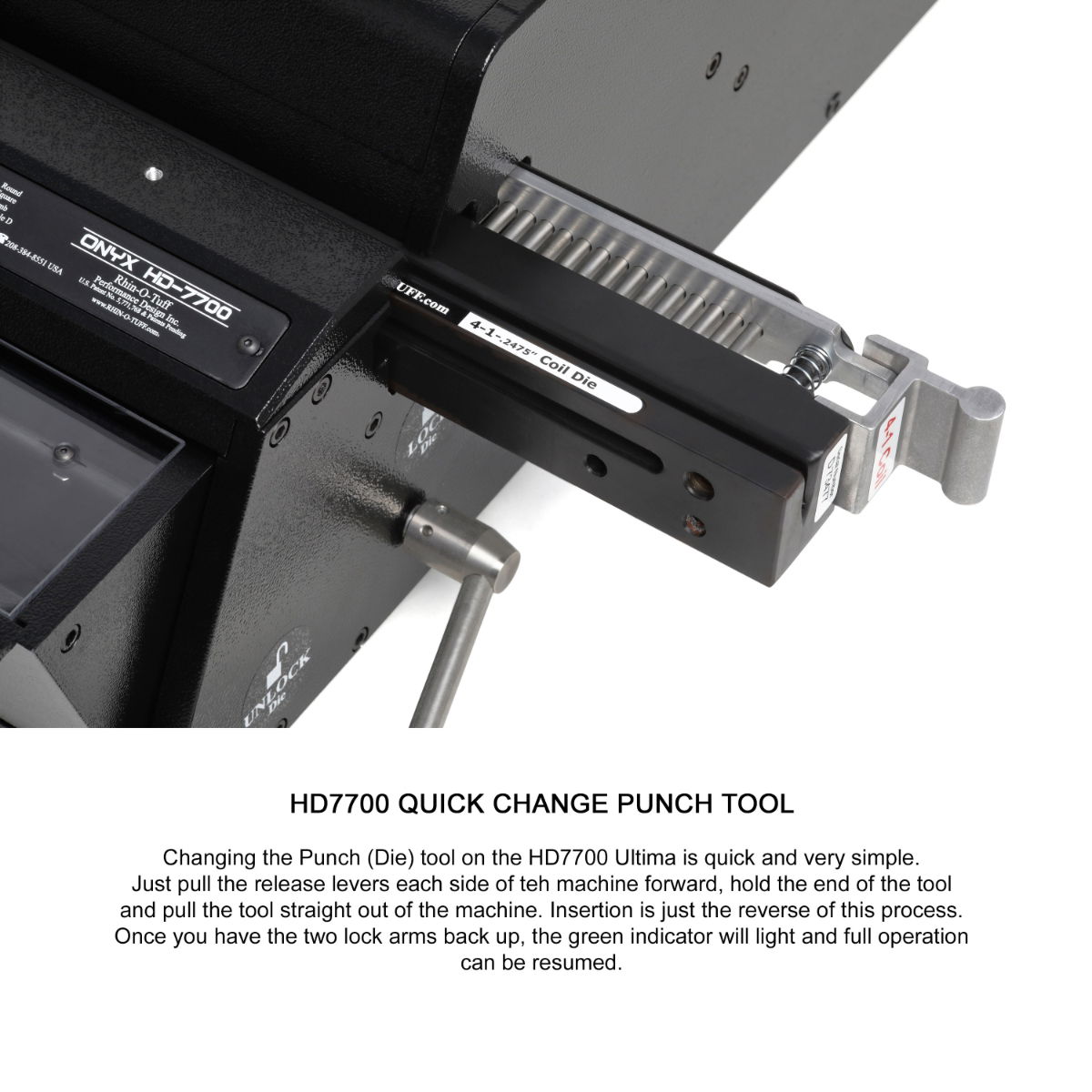

• Patented “QCDS”, Quick Change Die System - All punch pins easily disengage.

• “Accu-Set”paper adjustment knob - for fine adjustments on odd paper sizes.

• Smooth, Quiet, Power on Demand Operation.

• Standard Versa Switch and Foot Pedal operation. Palm Switch optional

• The HD7725 has more than 20 interchangeable dies available with 12 standard hole patterns. (Each die is priced separately).

  • Combs
  • Wire Loop
  • Plastic Coils
  • Velo Bind™ GBC
  • 3 Hole Loose Leaf

• Extremely durable - all metal construction.

• Extra high capacity Waste Chip Tray with Clear View Access - No sensors needed.

HD7725 Tooling
